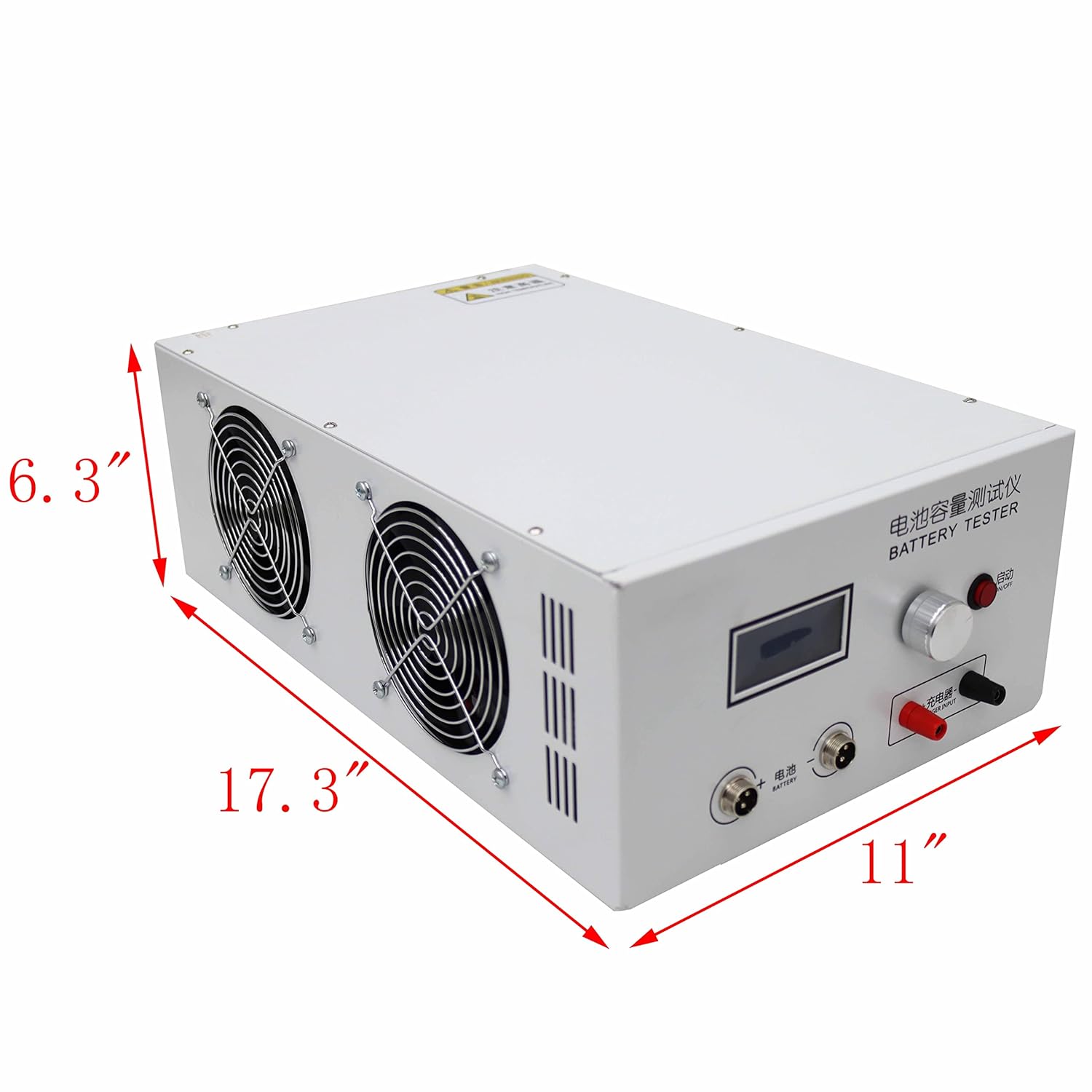

INTSUPERMAI 12-72V Lead Acid Lithium Battery Capacity Tester Support External Charger Automatic Discharge Electric Lead-Acid Lithium Battery Capacity Tester

The tester is designed for capacity test of 12-72V battery packs. You can set up discharging current and cut-off voltage. The tester supports automatic discharge and with a portable external battery charger it allows automatic charge. Connect it to a computer for a complete test graph and extensive functions. Parameters: 1. Input power: AC 100-240V 2. Cut-off voltage: 9.00-88.00V, stepper 0.01V 3. Discharge current: 0.10-20.00A, stepper 0.01A (to discharge 12V battery packs the max current is 10A) 4. Discharge voltage: 0.10-89.00V, stepper 0.01V 5. Capacity detection: <10Ah, 0.001Ah; 10-100Ah, 0.01Ah; > 100Ah, 0.1Ah 6. Test mode DSC: the tester can discharge the battery packs at a constant current and it stops automatically when the testing voltage reaches below the set value. Test mode CHG: the tester can charge the battery packs with an external charger and it stops automatically when the current reaches below the set value. 7. Four lines: voltage and current channels separated for high test accuracy. 8. LCD display: voltage, current, time, capacity, and etc. 9. PC connection: the tester can connect to a computer through a designated USB-TTL cable for more functions, like graphs, calibration, firmware upgrade, and test circulation. Item Number(239699)

• 【Application】 The tester is designed for capacity test of 12-72V battery packs. You can set up discharging current and cut-off voltage. The tester supports automatic discharge and with a portable external battery charger it allows automatic charge.
• 【Parameter】 Input power: AC 100-240V, Cut-off voltage: 9.00-88.00V, stepper 0.01V, Discharge current: 0.10-20.00A, stepper 0.01A (to discharge 12V battery packs the max current is 10A), Discharge voltage: 0.10-89.00V, stepper 0.01V, Capacity detection:< 10Ah, 0.001Ah; 10-100Ah, 0.01Ah; > 100Ah, 0.1Ah
• 【PC connection】 Connect it to a computer for a complete test graph and extensive functions. The tester can connect to a computer through a designated USB-TTL cable for more functions, like graphs, calibration, firmware upgrade, and test circulation.
• 【LCD display】The LCD display can show voltage, current, time, capacity, and etc, easy to observe. Comes with four lines, voltage and current channels separated for high test accuracy.
• 【Mode】Test mode DSC: the tester can discharge the battery packs at a constant current and it stops automatically when the testing voltage reaches below the set value. Test mode CHG: the tester can charge the battery packs with an external charger and it stops automatically when the current reaches below the set value.
